Distributed Tracing with Spring Cloud Jaeger

In this article, we will explore how to implement distributed tracing using Jaeger and visualize the traces using Jaeger UI.

Introduction

Jaeger is an open-source distributed tracing mechanism that helps to trace requests in distributed systems. It is based on opentracing specification and is a part of the Cloud Native Computing Foundation (CNCF).

I have explained some key concepts of tracing in my previous article “Distributed Tracing With Spring Cloud Sleuth”.

With this, let’s look at some code.

Implementing Jaeger Tracing

Let’s create an application from https://start.spring.io with only a single dependency “Spring Web”.

Once you generate and download the code, we will add the following Jaeger dependency to the pom file which will help to generate and propagate the traces between the services.

<dependency>
   <groupId>io.opentracing.contrib</groupId>
   <artifactId>opentracing-spring-jaeger-cloud-starter</artifactId>
   <version>3.3.1</version>
</dependency>

With this, let's add a controller with some paths.

@RestController
@RequestMapping("/service")
public class Controller {

    private static final Logger logger = LoggerFactory.getLogger(Controller.class);
    private RestTemplate restTemplate;

    @Value("${spring.application.name}")
    private String applicationName;

    public Controller(RestTemplate restTemplate) {
        this.restTemplate = restTemplate;
    }

    @GetMapping("/path1")
    public ResponseEntity path1() {

        logger.info("Incoming request at {} for request /path1 ", applicationName);
        String response = restTemplate.getForObject("http://localhost:8090/service/path2", String.class);
        return ResponseEntity.ok("response from /path1 + " + response);
    }

    @GetMapping("/path2")
    public ResponseEntity path2() {
        logger.info("Incoming request at {} at /path2", applicationName);
        return ResponseEntity.ok("response from /path2 ");
    }
}

Here, we have two endpoints /path1 and /path2 . The idea here is to use two instances of the same application such that/path1 calls /path2 of another service at a fixed port 8090.

For the spans to get connected to the same trace id, We need to create a RestTemplate bean to allow Jaeger to include an interceptor. This then helps to add traces to the outgoing request which will help to trace the entire request.

@Bean
   public RestTemplate restTemplate(RestTemplateBuilder builder) {
      return builder.build();
   }

With this done, Let’s start a Jaeger Server locally using docker. For this, I have created a docker-compose file with the port mappings.

version: "3.3"
services:
  jaeger-allinone:
    image: jaegertracing/all-in-one:1.25
    ports:
      - 6831:6831/udp
      - 6832:6832/udp
      - 16686:16686
      - 14268:14268

We can communicate with Jaeger using either via UDP or TCP. After starting the docker image using docker-compose up , we can access the UI using the URL http://localhost:16686/

Now, let's add some properties to allow the application to send the traces to the Jaeger server. We will communicate via TCP, so make sure that we send the traces to the other TCP port. i.e 14268

opentracing:
  jaeger:
    http-sender:
      url: http://localhost:14268/api/traces

Let’s start “Server 1” with the below command.

java -jar \
target/Distributed-Service-0.0.1-SNAPSHOT.jar \
--spring.application.name=Service-1 \
--server.port=8080

Then on a different terminal, run a new instance of the same application as “Service 2” as follows

java -jar \
target/Distributed-Service-0.0.1-SNAPSHOT.jar \
--spring.application.name=Service-2 \
--server.port=8090

Once the application starts, call “Service 1” at /path1 as follows

curl -i http://localhost:8080/service/path1

Let’s look at the logs of “Service 1”.

INFO 69938 --- [nio-8080-exec-1] i.j.internal.reporters.LoggingReporter   : Span reported: ed70bbaa2bd5b42f:c7c94163fc95fc1e:ed70bbaa2bd5b42f:1 - GET

The tracing is of the format [Root Span Id, Current Span Id, Parent Span Id]. In this case, since “Service 1” is the originating service, the parent span Id “ed70bbaa2bd5b42f” is also the root span id.

Now, let’s look at the logs of “Service 2”.

INFO 69885 --- [nio-8090-exec-1] i.j.internal.reporters.LoggingReporter   : Span reported: ed70bbaa2bd5b42f:e9060cb1d5336c55:c7c94163fc95fc1e:1 - path2

Here we see that the middle value is the current span id and the parent span id (ie. the third value “c7c94163fc95fc1e”) is the span id of “Service 1”.

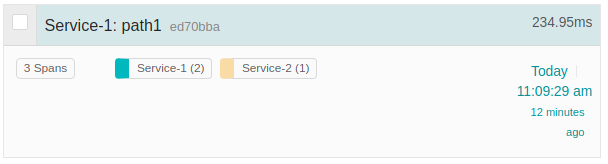

Now, If you open the UI you will see the following.

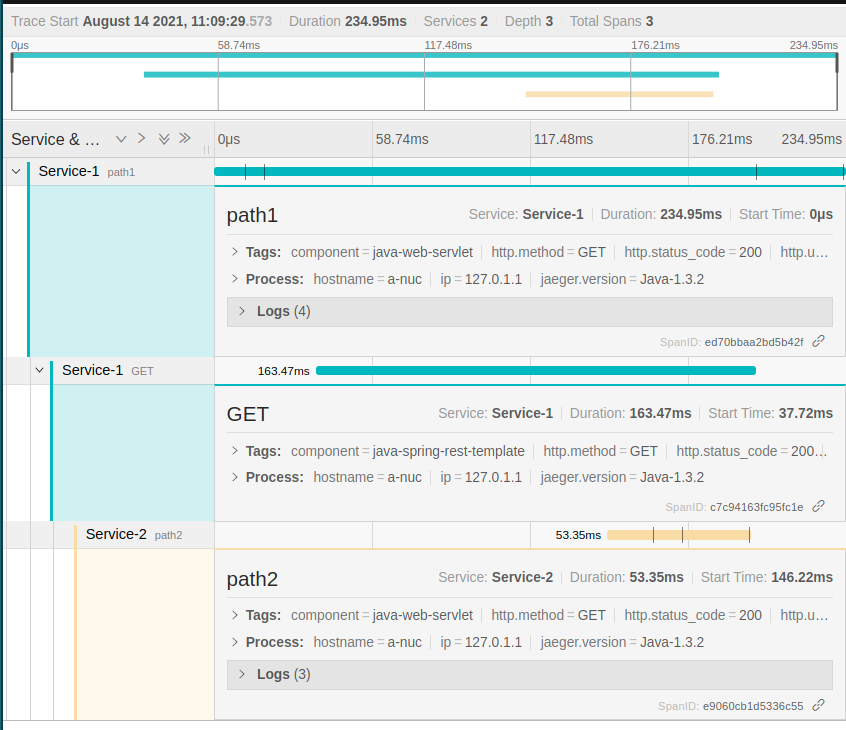

When we dig deeper, we see more details on each of the spans.

Here, the root span id “ed70bbaa2bd5b42f” spans across the entire request. The other two span ids refer to the individual services.

Conclusion

Today we explored how we can integrate Jaeger which is based on OpenTracing with a spring boot application. You can always read more in-depth about the specification of OpenTracing here. Also, the library documentation for using spring cloud Jaeger is here.

I have uploaded the code on GitHub.

You can read about Distributed tracing using Zipkin my previous article here.

I keep exploring and learning new things. If you want to know the latest trends and improve your software development skills, then subscribe to my newsletter on https://refactorfirst.com and also follow me on Twitter.

Enjoy!!

Distributed Tracing with Spring Cloud Sleuth And Zipkin

---

Amrut Prabhu

Published on August 19th, 2021 - 8 minute read

Photo Credits

In this article, we would learn how we can implement distributed tracing and understand the key concepts of distributed tracing.

Introduction

In the case of a single giant application that does everything which we usually refer to as a monolith, tracing the incoming request within the application was easy. We could follow the logs and then figure out how the request was being handled. There was nothing else we would have to look at but the application logs themselves.

Over time, monoliths become difficult to scale, to serve a large number of requests as well as delivering new features to the customer with the growing size of the codebase. This leads to breaking down the monolith into microservice which helps in scaling individual components and also helps to deliver faster.

But not all that shines is gold, right? It’s the same thing with microservices. We split the entire monolith system into microservices and every request that was processed by a set of local function calls is now replaced by calling a set of distributed services. With this, we lose things like tracing a request that was easily done in a monolith. Now to trace each request we would have to look at the logs of each service and it becomes difficult to correlate.

So in the case of distributed systems, the concept of distributed tracing helps with tracing a request.

What is Distributed Tracing?

Distributed tracing is a mechanism with which we can trace a particular request throughout a distributed system. It allows us to track how a request progresses from one system to another thereby completing the user’s request.

Key concepts of Distributed Tracing.

Distributed tracing consists of two main concepts

• Trace Id
• Span Id

Trace Id is used to trace an incoming request and track it across all the composing services to satisfy a request.

Span Id is more of spans in between service calls to track each request that is received and to the response that is sent out.

let’s have a look at the diagram.

The incoming request doesn’t have any Trace id, the first service intercepting the call generates the trace id “ID1” and its span id “A”. The span id “B” covers the time from when the client at server 1 sent out the request, then server 2 receiving it, processing it, and sending out the response.

With the concepts understood, let’s now do this practically and understand more inside details.

Spring Boot Example With Spring Cloud Sleuth

Let’s create an application with spring cloud sleuth integrated. To start, let’s go to https://start.spring.io/ and create an application with the dependencies “Spring Web” and “Spring Cloud Sleuth”.

Now let’s create a simple controller with two request mapping.

public class Controller {

 private static final Logger logger = LoggerFactory.getLogger(Controller.class);

 private RestTemplate restTemplate;

 @Value("${spring.application.name}")
 private String applicationName;

 public Controller(RestTemplate restTemplate) {
    this.restTemplate = restTemplate;
 }

 @GetMapping("/path1")
 public ResponseEntity path1() {

  logger.info("Request at {} for request /path1 ", applicationName);
  String response = restTemplate.getForObject("http://localhost:8090/service/path2", String.class);
  return ResponseEntity.ok("response from /path1 + "+ response);
 }

@GetMapping("/path2")
public ResponseEntity path2(){
  logger.info("Request at {} at /path2", applicationName);
  return ResponseEntity.ok("response from /path2 ");
}

Here I have created two paths, Path1 calling Path2 at a fixed port 8090. The idea here is to run two separate instances of the same application.

Now to allow sleuth to inject headers into the outgoing request, we need the RestTemplate to be injected as a bean rather than initializing it directly. This will allow sleuth to add an interceptor to the RestTemplate to inject a header with the trace id and span id into the outgoing request.

@Bean
   public RestTemplate restTemplate(RestTemplateBuilder builder) {
      return builder.build();
   }

Now, let’s start the two instances. To do that, first, build the application with mvn clean verify and then run the following command to start “Service 1”

java -jar \
target/Distributed-Service-0.0.1-SNAPSHOT.jar \
--spring.application.name=Service-1 \
--server.port=8080

Then on a different terminal run “Service 2” as follows

java -jar \
target/Distributed-Service-0.0.1-SNAPSHOT.jar \
--spring.application.name=Service-2 \
--server.port=8090

Once the application starts, call “Service 1” at /path1 as follows

curl -i http://localhost:8080/service/path1

Now let’s look at the logs of “Service 1”.

INFO [Service-1,222f3b00a283c75c,222f3b00a283c75c] 41114 --- [nio-8080-exec-1] c.a.p.distributedservice.Controller      : Incoming request at Service-1 for request /path1

The log contains square brackets with three parts [ Service name, Trace Id, Span Id ]. For the first incoming request, since there is no incoming trace id, the span id is the same as the trace id.

Looking at the logs of “Service 2”, we see that we have a new span id for this request.

INFO [Service-2,222f3b00a283c75c,13194db963293a22] 41052 --- [nio-8090-exec-1] c.a.p.distributedservice.Controller      : Incoming request at Service-2 at /path2

I intercepted the request being sent out of “Service 1” to “Service 2” and found the following headers already present in the outgoing request.

x-b3-traceid:"222f3b00a283c75c"
x-b3-spanid:"13194db963293a22"
x-b3-parentspanid:"222f3b00a283c75c

Here we see, the span for the next operation (call to “Service 2”) is already injected in the headers. These were injected by “Service 1” when the client was sending out the request. This means the span for the next call to “Service 2” is already started from the client of “Service 1”. In the headers shown above, The span id of “Service 1” is now the parent span id for the next span.

Now to make things easier to understand, we can visually see the traces using an interceptor tool called Zipkin.

Visualizing Traces with Zipkin

To integrate Zipkin with the application, we would need to add a Zipkin client dependency to the application.

<dependency>
   <groupId>org.springframework.cloud</groupId>
   <artifactId>spring-cloud-sleuth-zipkin</artifactId>
</dependency>

On adding this dependency, the Zipkin client by default sends the traces to the Zipkin server at port 9411.

let’s start the Zipkin server using its docker image. I created a simple docker-compose file for this.

version: "3.1"
services:
  zipkin:
    image: openzipkin/zipkin:2
    ports:
      - "9411:9411"

We can now start the server using docker-compose up command. You can then access the UI at http://localhost:9411/

Since we are using the default port, we don’t need to specify any properties, But if you plan to have a different port, you would need to add the following property.

spring:
   zipkin:
      baseUrl: http://localhost:9411

With this done, let’s start both the applications using the same commands from above.

On placing a request to “Service 1” at the path /path1 we get the following traces.

Here it shows the spans for the two services. We can dig deeper by looking at the spans.

The span for “Service 1” is a normal span covering from when it received the request to it returning a response.

The interesting one is the second span.

In this, there are 4 points in the span.

• The first point refers to when the client from “Service 1” started the request
• The second point is when “Service 2” started processing the request.
• The third point is when the client on “Server 1” finished receiving the response.
• And finally, the last point when “Server 2” finished.

Conclusion

So with this, we have learned how we can integrate distributed tracing with spring cloud sleuth and also visualized the traces using Zipkin.

I have uploaded the code on GitHub.
